Power House Tool Radius Gauges


Radius Taper Gauges
    Packing Gauges
        Straight Taper Gauges

Radius Taper Gauge



These gauges take axially (X&Y) clearance readings between the packing and the packing gland on the rotor. Their design permits you to take the reading and clear the packing bore and rotor. Reading can be taken on turbine wheels, diaphrams, packing, bearing clearances, as well as other applications.

Click on any photos to enlarge


Model Number
Range
(inches)

RXY25100 .025 - .100
RXY50300 .050 - .300
RXY275500 .275 - .500
RXY450650 .450 - .650

nickel plated radius taper gauge

easy to read radius taper gauge

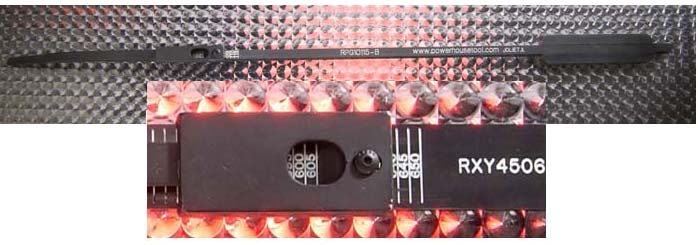

Radius Packing Gauge

  Takes the radius reading between the packing and the shaft. It will clear the shaft and the rotor below the joint for an accurate reading.
Model RPG10115 - takes readings below the joint where the packing teeth are broken or damaged.
Model RPG10115A - only takes readings at the horizontal joint,.

Model Number
Range
(inches)

RPG10115 .010 - .115
RPG10115A .010 - .115

nickel plated radius packing gauge

radius packing gauges that are easy to read

Straight Taper Gauge

  This gauge is designed to take readings on turbine wheels, diaphragms, packing, bearing clearances, as well as other applications. This gauge replaces a full set of feeler gauges.

Model Number
Range
(inches)
Width
(inches)

ES200 .020 - .200
.25
100250 .005 - .250
.25
100500 .020 - .500
.25
200500 .020 - .500
.375
3001000 .450 - 1.000
.25
1001000 .450 - 1.000
.375
2001000 .370 - 1.000
.375
1001500 .950 - 1.500
.375
1002000
1.450 - 2.000
.375

nickel plated straight taper gauges

straight taper gauges

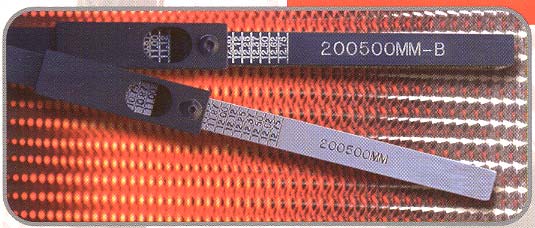

Metric Gauges


Power House Tool Gauges are all available in nickel plated and black easy read finishes.

STRAIGHT TAPER GAUGE

Model Number
Range
(metric)
Width
(inches)

ES200mm
.50 - 5.0
.25
100250mm
.20 - 6.60
.25
100500mm
.40 - 12.80
.25
200500mm
.40 - 12.80
.375
3001000mm
12.0 - 25.0
.25
1001000mm
12.0 - 25.0
.375
2001000mm
9.40 - 25.40
.375
1001500mm
25.0 - 38.0
.375
1002000mm
37.0 - 50.0
.375

RADIUS TAPER GAUGE

Model Number
Range
(metric)

RXY25100mm .60 - 3.00
RXY50300mm 1.20 - 7.60
RXY275500mm 7.0 - 12.80
RXY450650mm 12.0 - 16.60

RADIUS PACKING GAUGE

Model Number
Range
(metric)

RPG10115amm .20 - 3.000
RPG10115mm .20 - 3.000

Add the letter B to end of model # for easyread gauge (example: 100250B)
